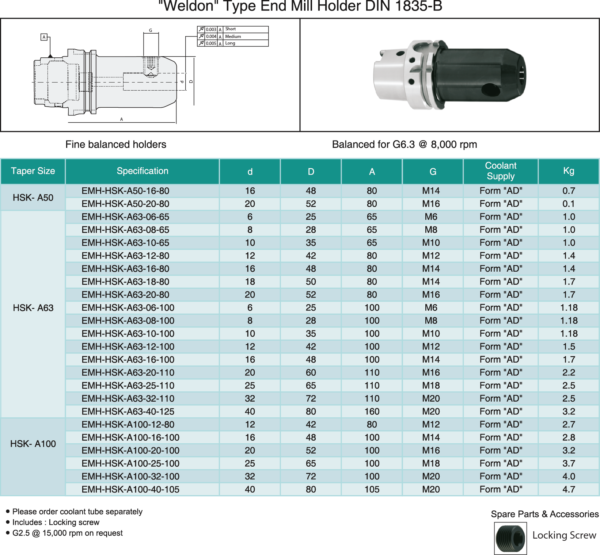

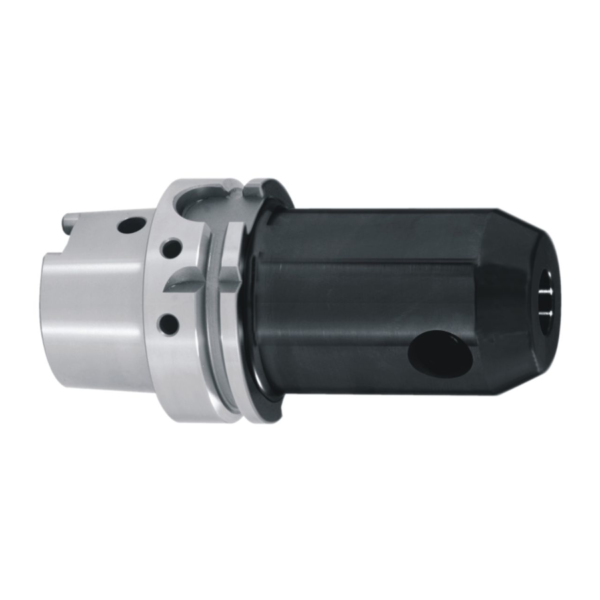

HSK - Weldon Type End Mill Holder DIN 1835-B

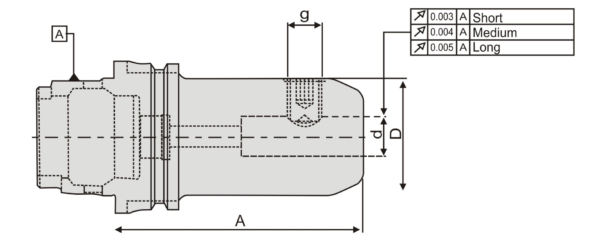

HSK Tool Holder Weldon End mill holder DIN 1835-B - Drawing

hsk_Weldon Type End Mill Holder DIN 1835-B

HSK – Weldon Type End Mill Holder

$ 40.95 – $ 102.69 excl. GST

Fine balanced holders
HSK – Weldon Type End Mill Holder
Balanced for G2.5 15,000 rpm

For further details and prices please choose specification first …

Taper Size

Specification

Clear

SKU: EMH-HSK Categories: HSK - Weldon Type End Mill Holder, HSK Tool Holders

Fine balanced holders
“Weldon” Type End Mill Holder DIN 1835-B
Balanced for G2.5 15,000 rpm
Bore tolerance H4
Please order coolant tube separately
Includes : Locking screw

Download/View the PDF Catalog (Opens in a new window)

Weight	N/A

Brand

Sunrise CNC Toolings
