SK Tool Holder ER type Collet Chuck DIN 6499 & DIN 69871

sk_er_type_collet_chunk

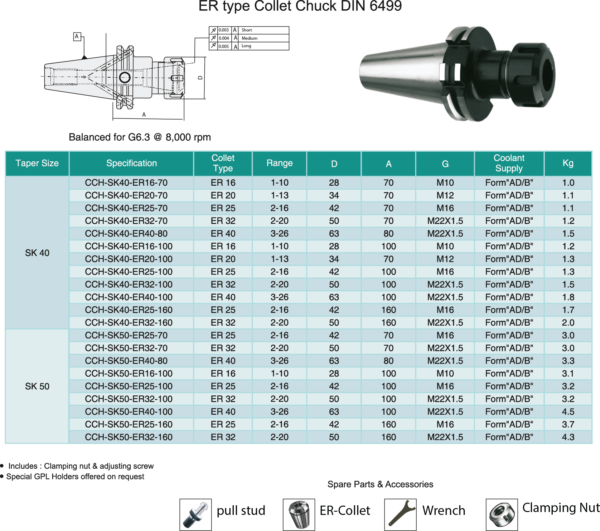

SK Tool Holder ER type Collet Chuck DIN 6499 - Drawing

Taper Size SK 50 – ER Type Collet Chuck

$ 64.55 – $ 87.58 excl. GST

Fine balanced holders
ER Type Collet Chuck DIN 6499
Taper Size SK 50
Balanced for G6.3 12,000 rpm
Delivery includes : Clamping nut (balanced) & adjusting screw
Data carrier bore (10mm) as standard for all holders

Scroll down for more details …

SK50 Specification

Clear

SKU: CCH-SK50 Categories: SK - ER Type Collet Chuck, SK Tool Holders Tag: ER Type Collet Chuck

Fine balanced holders
ER Type Collet Chuck DIN 6499
Taper Size SK 50
Balanced for G6.3 12,000 rpm
Delivery includes : Clamping nut (balanced) & adjusting screw
Download/View the PDF Catalog (Opens in a new window)

Weight	N/A

Brand

Sunrise CNC Toolings
